The Battery can be applied to Union, Union Cadence, Union Canto,
Union Electrobeat, Hollandia, Ansmann, V-Bike, Ilse Bike, Kalkhoff
Groove, MIFA (Aldi), Vogue etc.

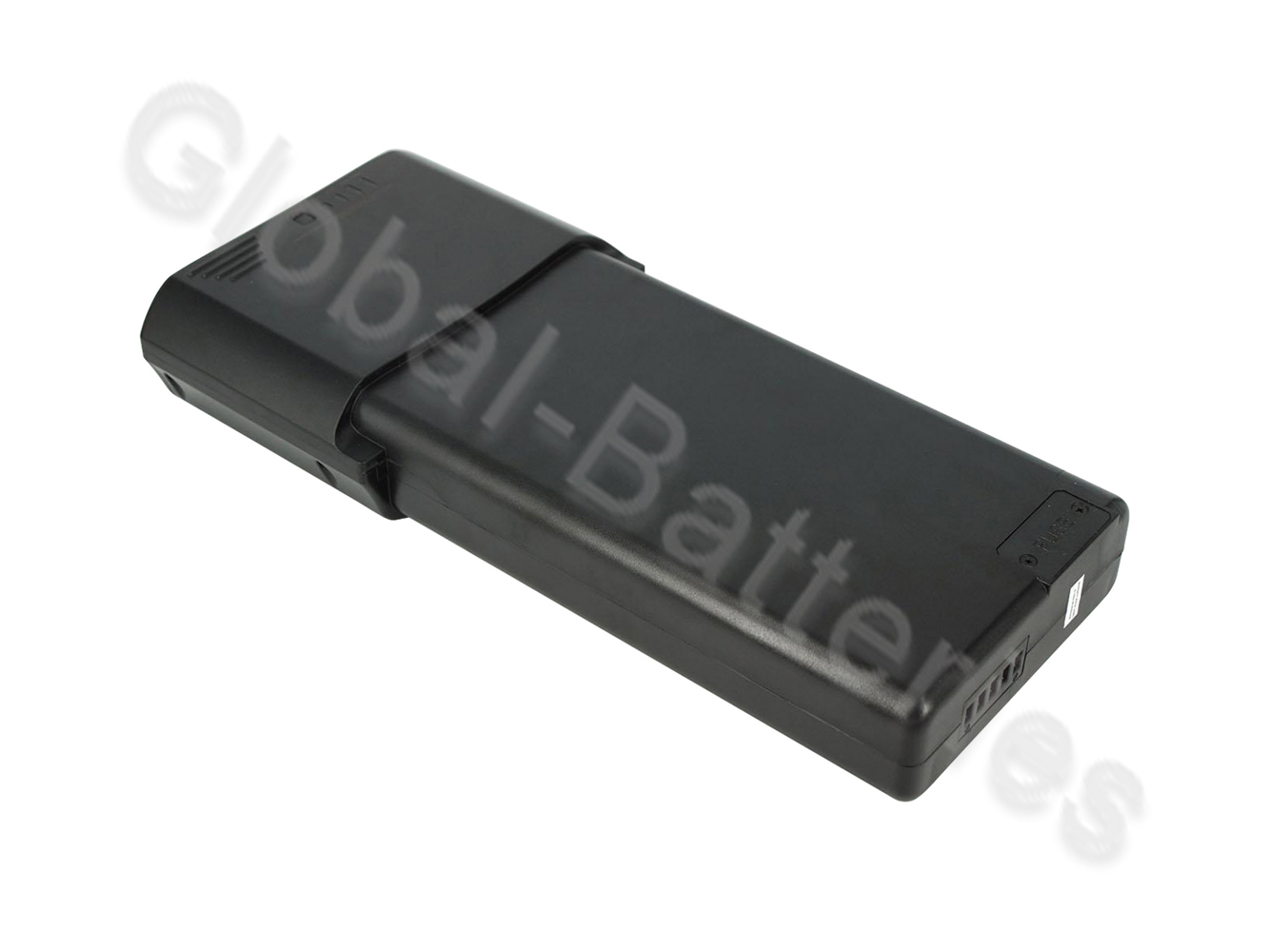

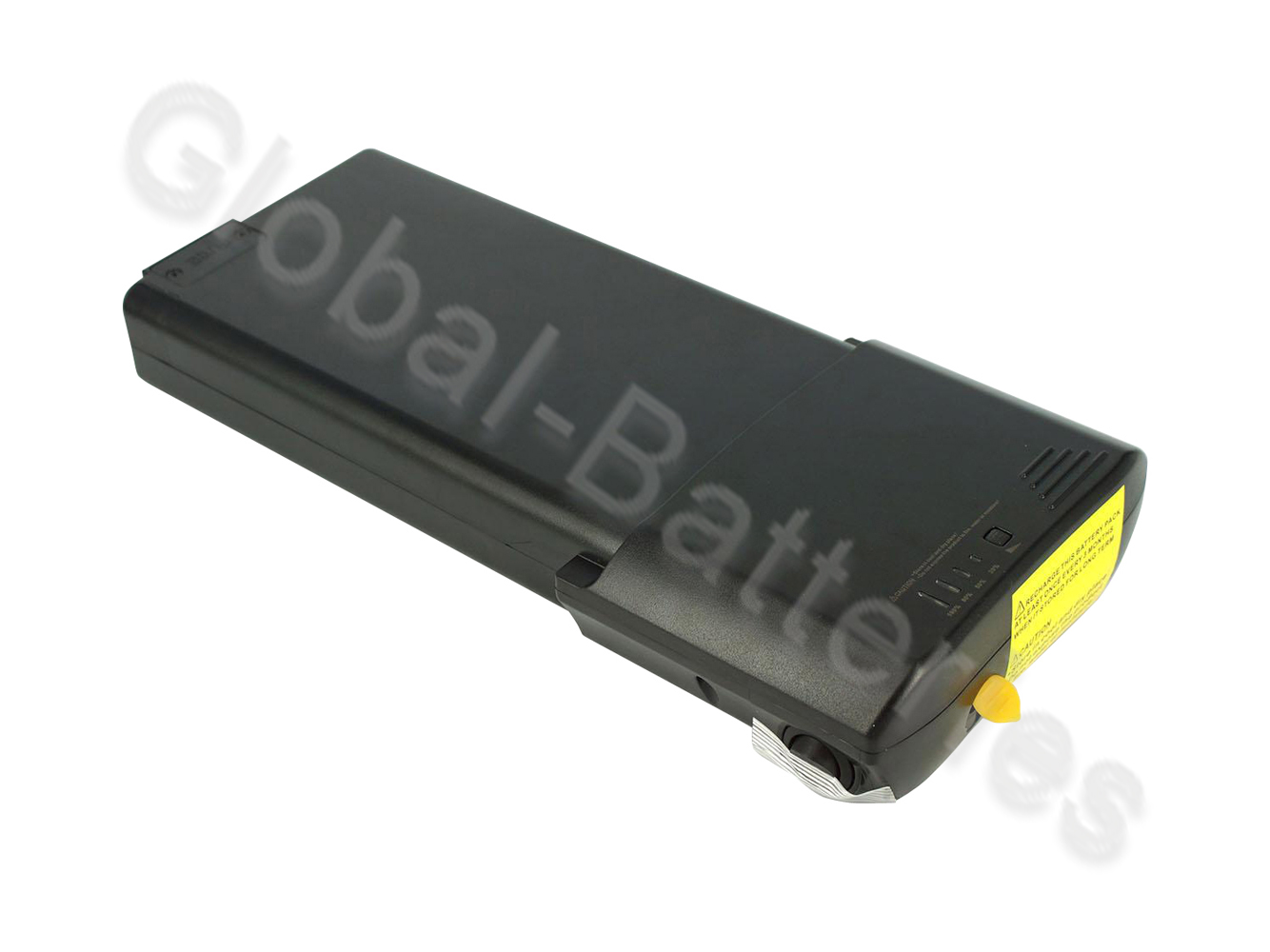

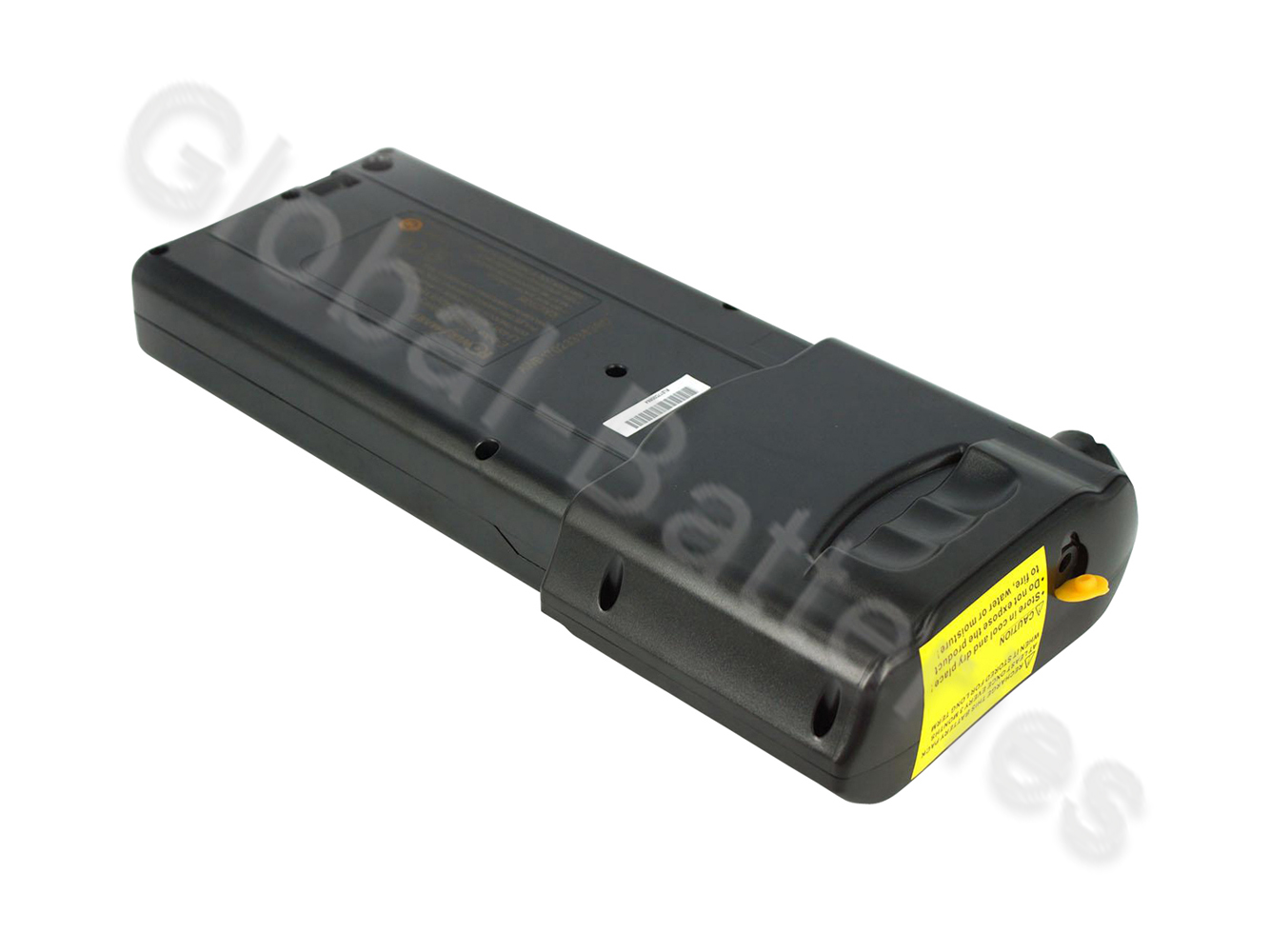

This Rear Carrier designed battery is easy-to-install, assembled by
very high-quality Panasonic cells that guarantee a high volumetric
energy density. We recommend this battery for usual discharge current of
15A (may reach up to 18A for maximum of 10 minutes).
This battery can only be used with 36V battery bracket (LBH005 or
LBH006). The battery bracket is designed for rear frame installation
only.
The dimensions of this battery are as follows:
Package
- 13.6Ah Li-ion battery x 1
Technical Data
- Capacity: 13.6Ah
- Voltage: 36V
- Size : 321.00 x 148.00 x 56.00 mm
- Cell Brand: Panasonic
- Charge Voltage Limit: 42.5 V
- Max. Charge Current : 2 A
- 10 min Discharge Current : 18 A
- 5sec Discharge Current : 35 A
- Continuous Discharge Current : 15 A
- Operate Temp. Charge : 0~45 °C
- Operate Temp. Discharge : -20~60 °C
Battery Features
- Cell Balancing with intelligent BMS (Battery Management System)
- Over charge, over discharge, over current and temperature protection
- EMC Certificate (Electro Magnetic Compatibility)
- Splash protected casing
- Safety convex groove on the battery case, preventing inserting battery into unmatched battery bracket
The part Compatible models of this battery are as follows
Aktivelo
Suitable for Tiefeinsteiger models
aktivelo aluminum electric low-entry wheel, 26 inches
Ansmann
3200-0008, 3200-0001, 1036-401-090
BBF
MADRID, Alicante, Lissaon, Aluminium Folding Bike Deep Entry
Bergsieger / Diermann
E-Bike - City-Trendy / Basic-Tiefeinsteiger /
Classic-Wave-Hydroforming-S / Classic low beginner
Bottcher
CALUNA CLUB-E 26 / CALUNA CLUB-E 28 /
CALUNA PLUS-E FRONT ANSMANN / FRIENDS-E KAL/
SAFARI-E FRONT ANSMANN Curve Ansmann /
SAFARI-E FRONT ANSMANN Diamant Ansmann /
SAFARI-E FRONT ANSMANN Anglaise Ansmann /
SAFARI-E HECK ANSMANN Diamant Ansmann
Brinke
batPH3611, 6BK
city bike - Life Comfort / Life Sport / Venice / Venice Black
Campus
AH 1 / AH 2 / AF 4 / AF 5
Columbus
eTrekking LIGHT KETTE / LIGHT NABE /
BIG APPLE / eCity COMFORT / eCargo CARGO
E.MOVE
CITY BIKE: (E.MOVE) E-CITY LOW STEP /
E-RETRO / E-RETRO LOW STEP / THE METRO III /
FOLDING BIKE: THE LOW DOWN III
ebikesolutions
EBS PEDELEC RACK MOUNTED BATTERY 36V
ENIK
Enik Easy White / Black
HINERGY / WAYEL
URBAN: VENTO REAR / VENTO / VENTO PLUS / VENTO CM /
PACK AND GO: CLICK /
CLASSIC: E-TOWN / Slope /
MOMODESIGN: CITY BIKE UNISEX 26″
Hollandia
HOLLANDIA FOLDER E-BIKE VOUWFIETS DER6 BLACK /
SWINCKELS AMIENS /
Lombardo
MOBILITY SERY
ISCHIA FOLDING / LEVANZO SPORT / LEVANZO CITY /
TORINO SPORT / TURIN NEXUS / MODENA TREKKING WOMAN /
MODENA TREKKING MAN / VITERBO TREKKING WOMAN /
VITERBO TREKKING MAN
McKenzie
Mifa MCKENZIE E100+
Montana
Montana CTB Blue City
R-4925-L1-E-BLUECITY 28" LUSSO LADY TY-300 6V./
R-4925-M1-E-BLUECITY 28" LUSSO MAN TY-300 6V./
R-4628-1-E-AYDA 28" LUSSO TY-300 6V./
R-4626-1-E-AYDA 26" LUSSO TY-300 6V./
R-4925-L-E-BLUECITY 28" ECO LADY TY-300 6V./
R-4925-L-M-BLUECITY 28" ECO MAN TY-300 6V./
R-4628-E-AYDA 28" ECO TY-300 6V./
R-4626-E-AYDA 28" ECO TY-300 6V./
R-4320-FOLDING SW7 20" Folding 6V./
PfauTec
COMFORT FM / NAPOLI 2 / P3 / S3 / SCOOTERTRIKE L-FM
Raleigh
Raleigh Groove F8 2013 E-Bike Elektrofahrrad Fahrrad Pedelec
Teutoburg
Teutoburg E-Bike Senne
Union
Electric ladies bike, type: Cadence E-bike 28 " /
Canto/ Electrobeat / eRail
Viking
Downtown 36 Black
Zundapp
Zundapp aluminum electric trekking bike 4.7 /
21-speed Shimano derailleur /
28er men Zundapp E-Bike Trekking Green 28 inches 4.5 /
7-Speed rear engine 360 WH 71.12 cm (28 Inches) |
