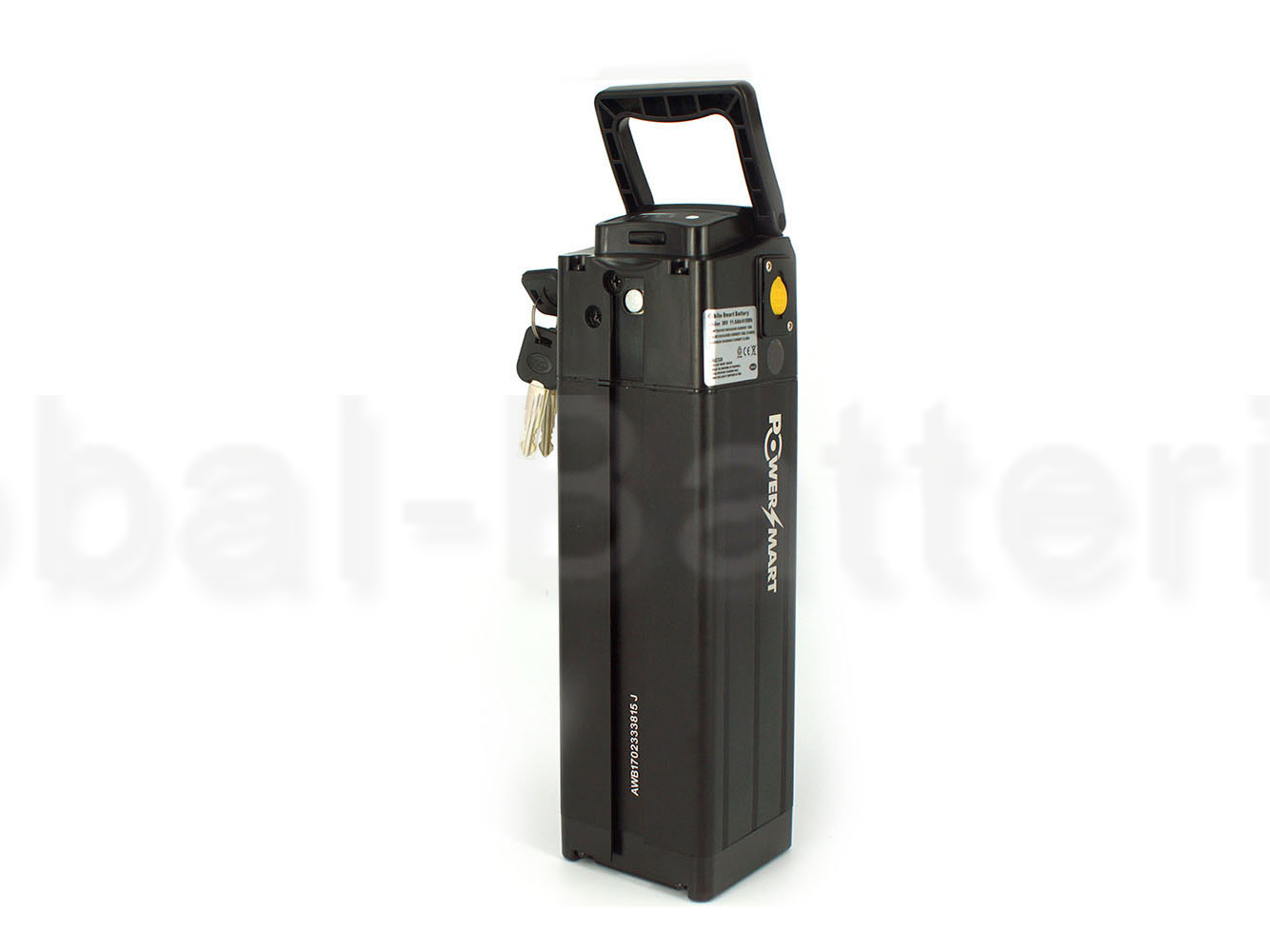

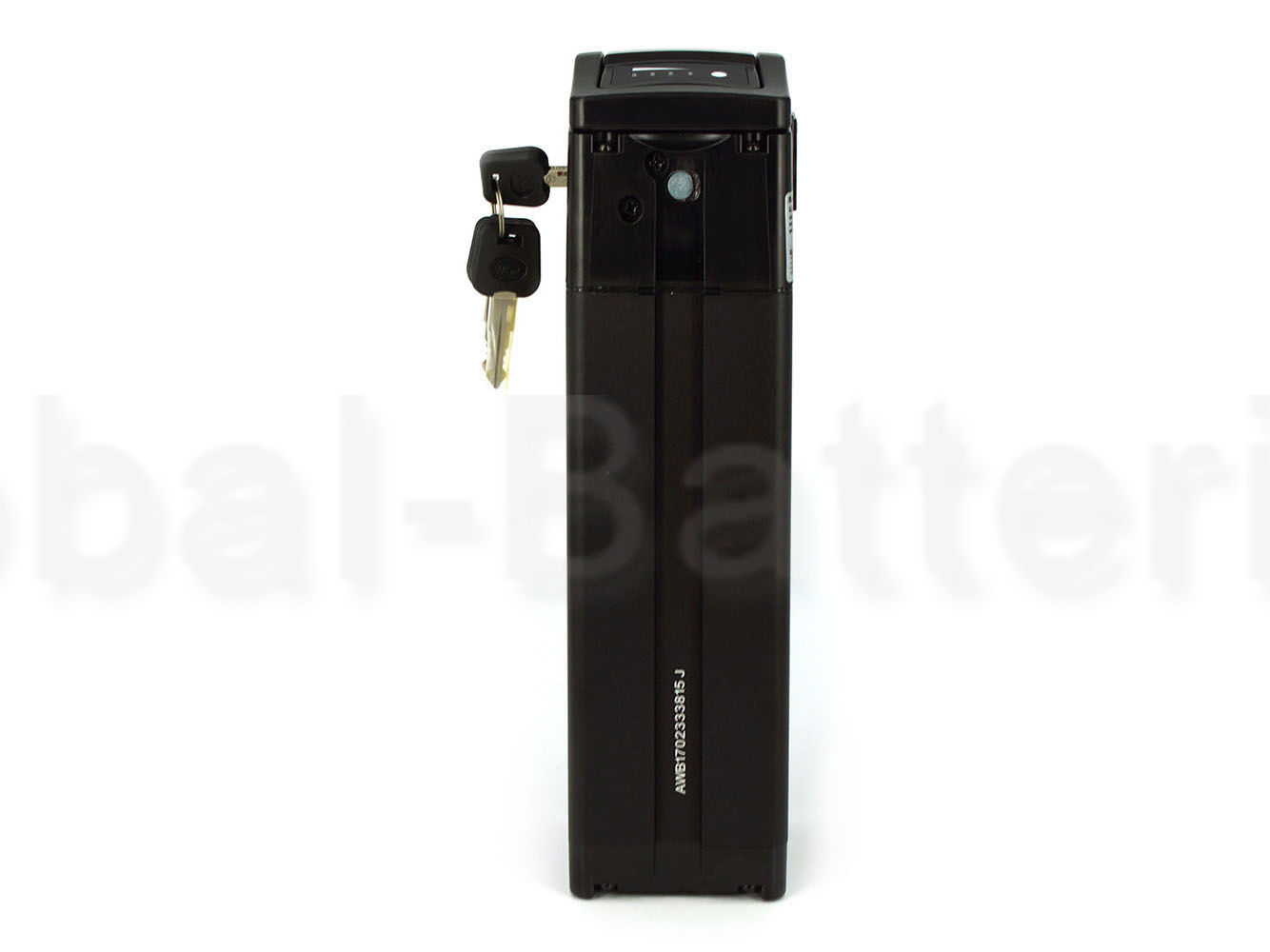

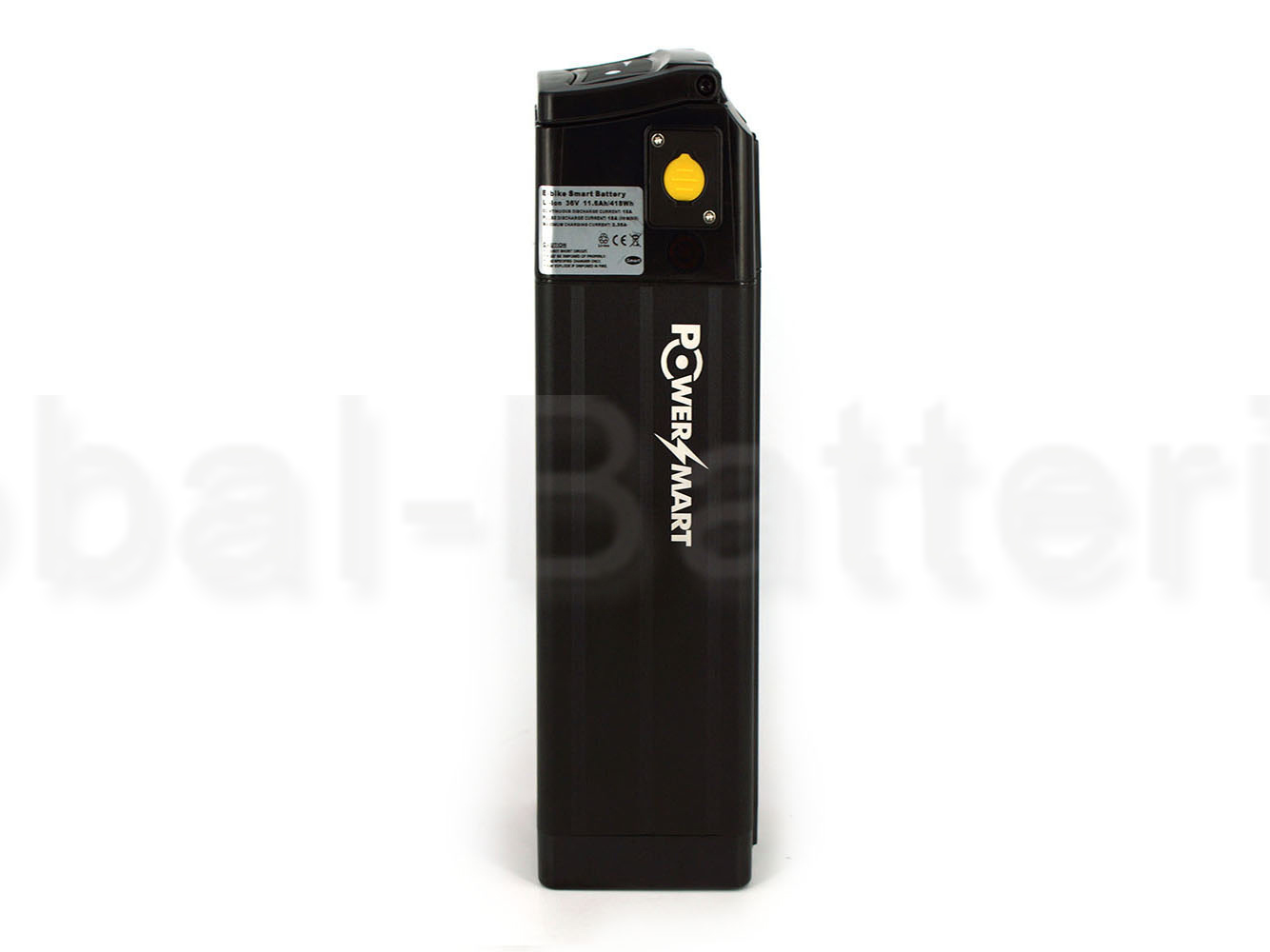

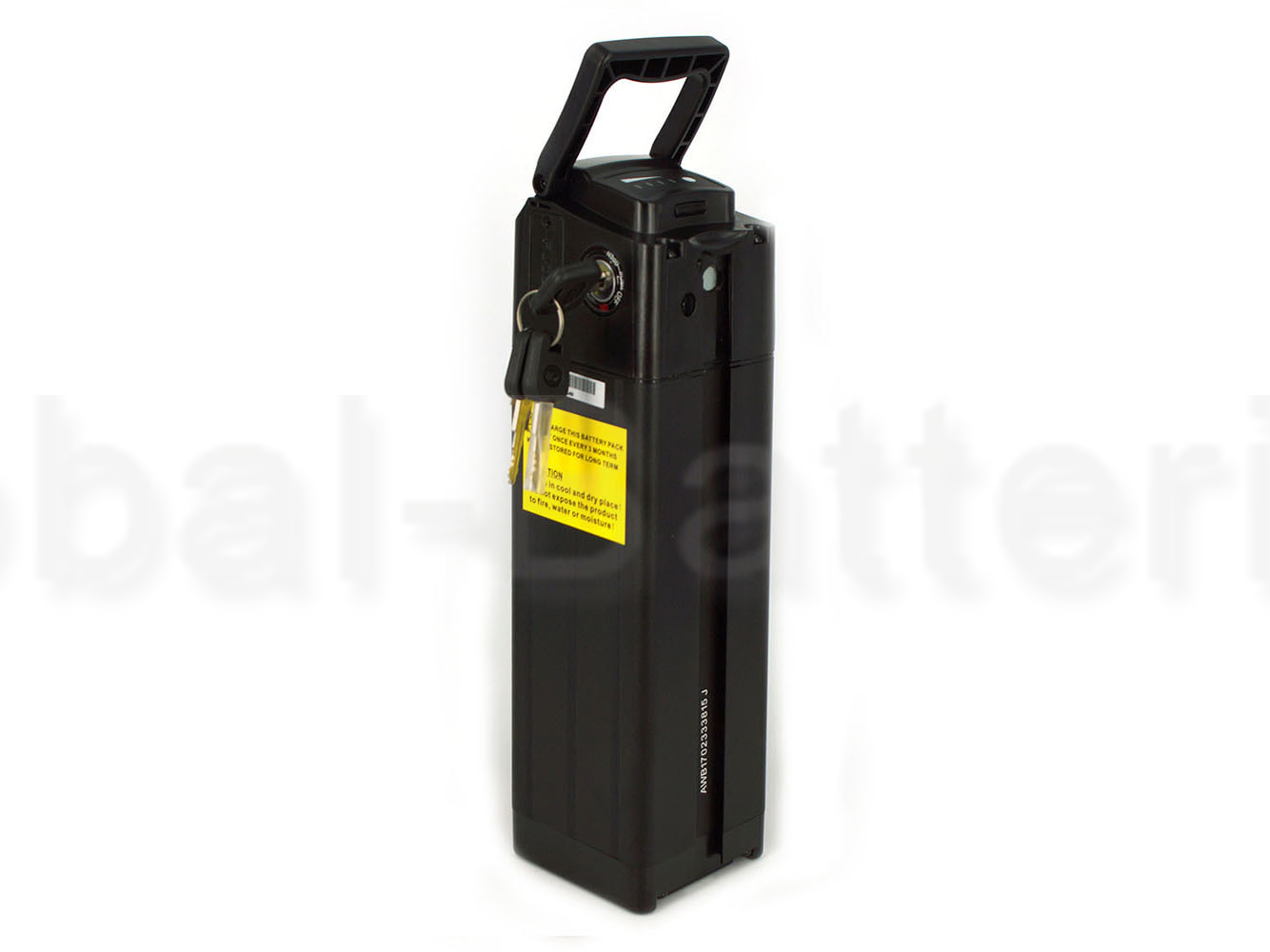

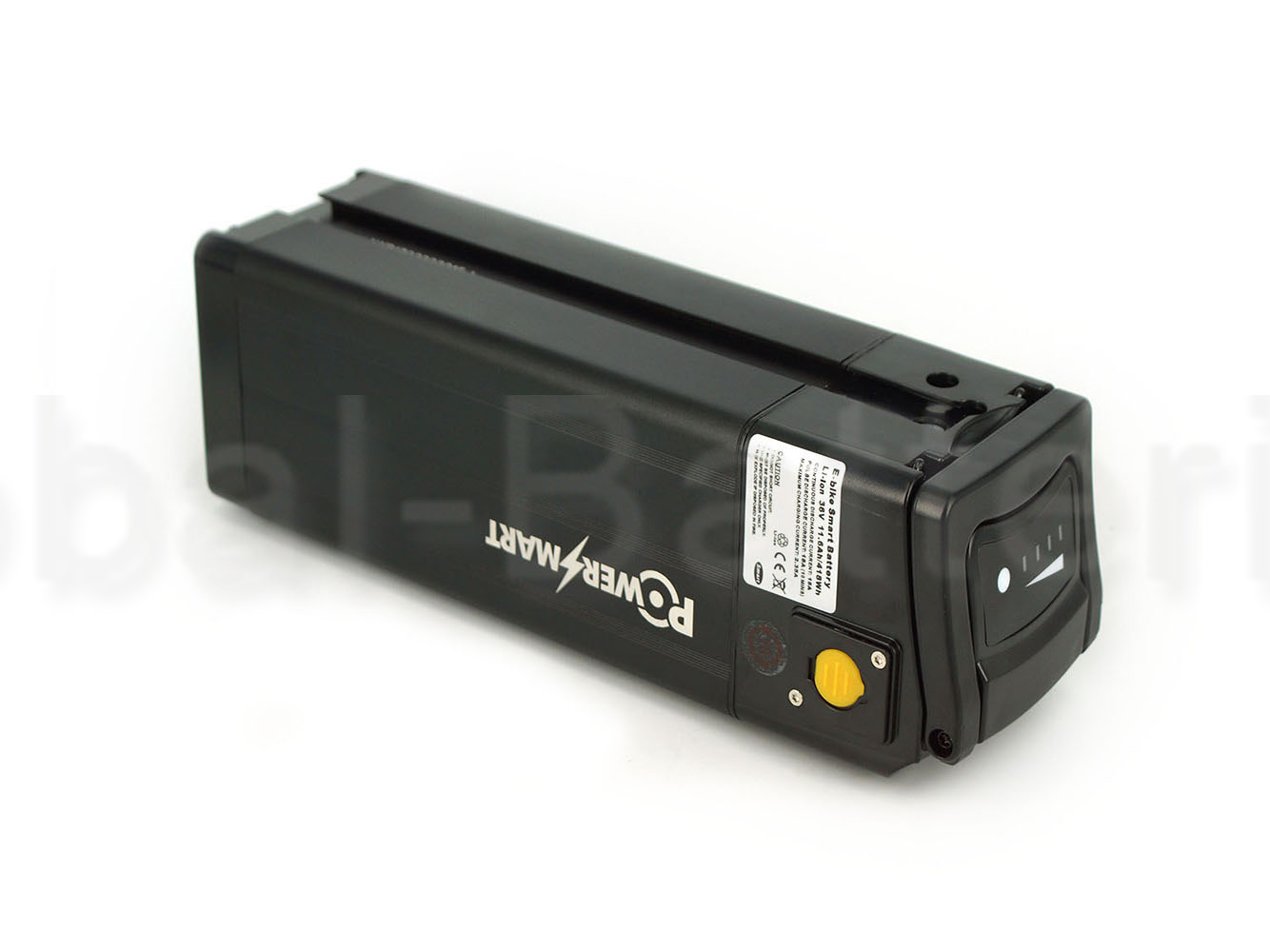

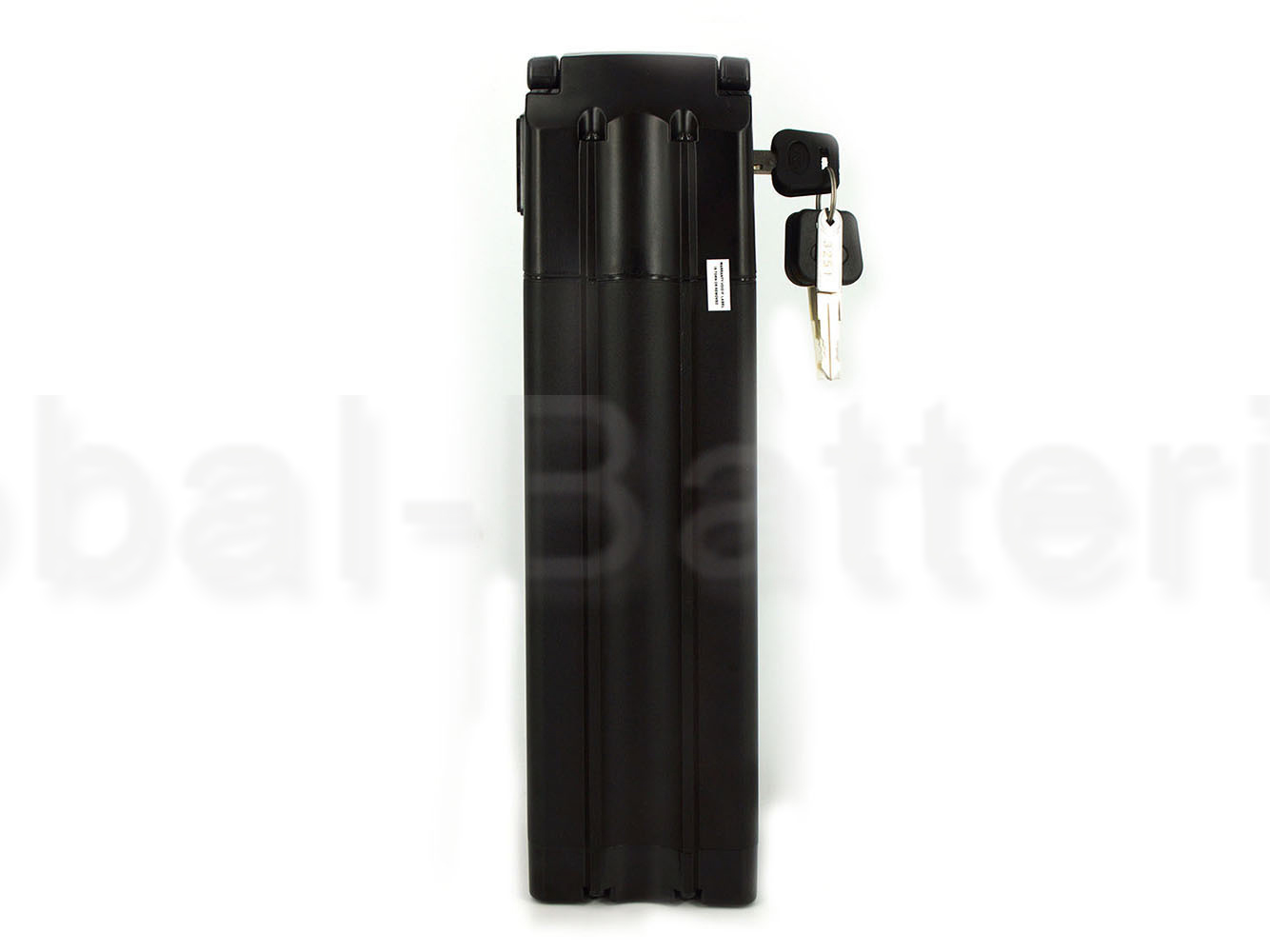

This Handy Carry designed battery is easy-to-install, assembled by very high-quality Panasonic cells that guarantee a high volumetric energy density. We recommend this battery for usual discharge current of 15A (may reach up to 18A for maximum of 10 minutes).
This battery can only be used with 36V battery bracket (LBH016+LBH017). The battery bracket is designed for mounting at the rear portion of the seat post only
Package
- 11.6Ah Li-ion battery x 1
| Battery Range* |
| Capacity |
Minimum Range |
Maximum Range |
| 11.6Ah |
Approx 50km (30mi) in hilly terrain |
Approx 85km (53mi) in gentle terrain |
| * Can vary significantly depending on terrain, riding style, type of bike and weather. |
Battery Features
- Cell Balancing with intelligent BMS (Battery Management System)
- Over charge, over discharge, over current and temperature protection
- EMC Certificate (Electro Magnetic Compatibility)
- Splash protected casing
- Safety convex groove on the battery case, preventing inserting battery into unmatched battery bracket
| Technical Data |
| Voltage |
36V |
| Capacity |
11.6Ah/418Wh |
| Continuous Discharge Current |
15A |
| Cell Brand |
Panasonic |
| Battery Weight |
2.7kg |
| Battery Dimensions |
| Length |
89mm |
| Width |
87mm |
| Thickness |
289mm |
|
