This Rear Carrier designed battery is easy-to-install, assembled by very high-quality Panasonic cells that guarantee a high volumetric energy density. We recommend this battery for usual discharge current of 13A (may reach up to 18A for maximum of 10 minutes).
Important: Before purchase, please measure and ensure the dimensions of this mounting bracket match with the rear frame of your eBike for installation.

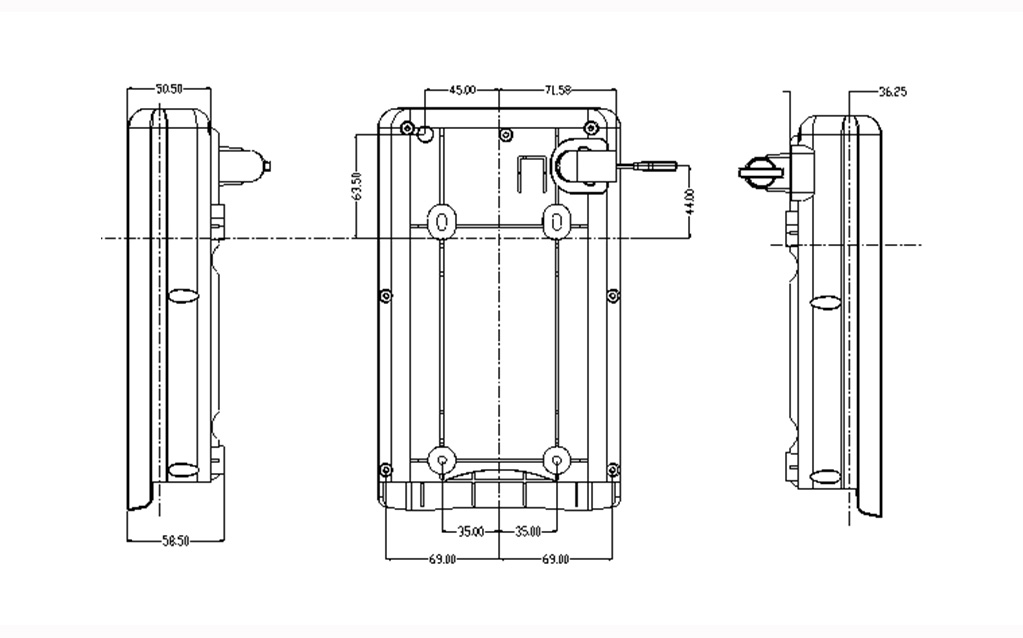

The dimensions of this mounting bracket are as follows:

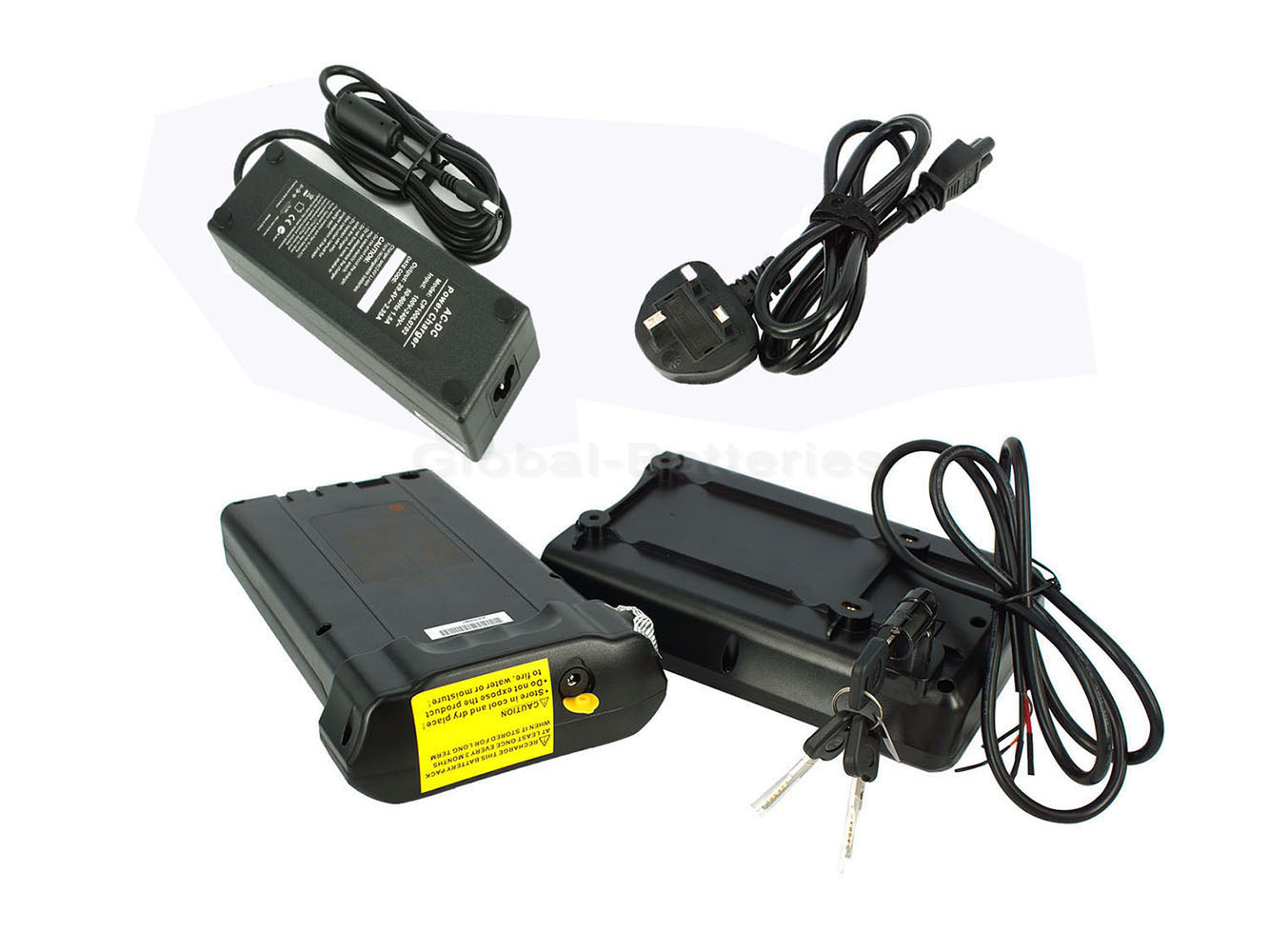

Package
- 11.6Ah Li-ion battery x 1

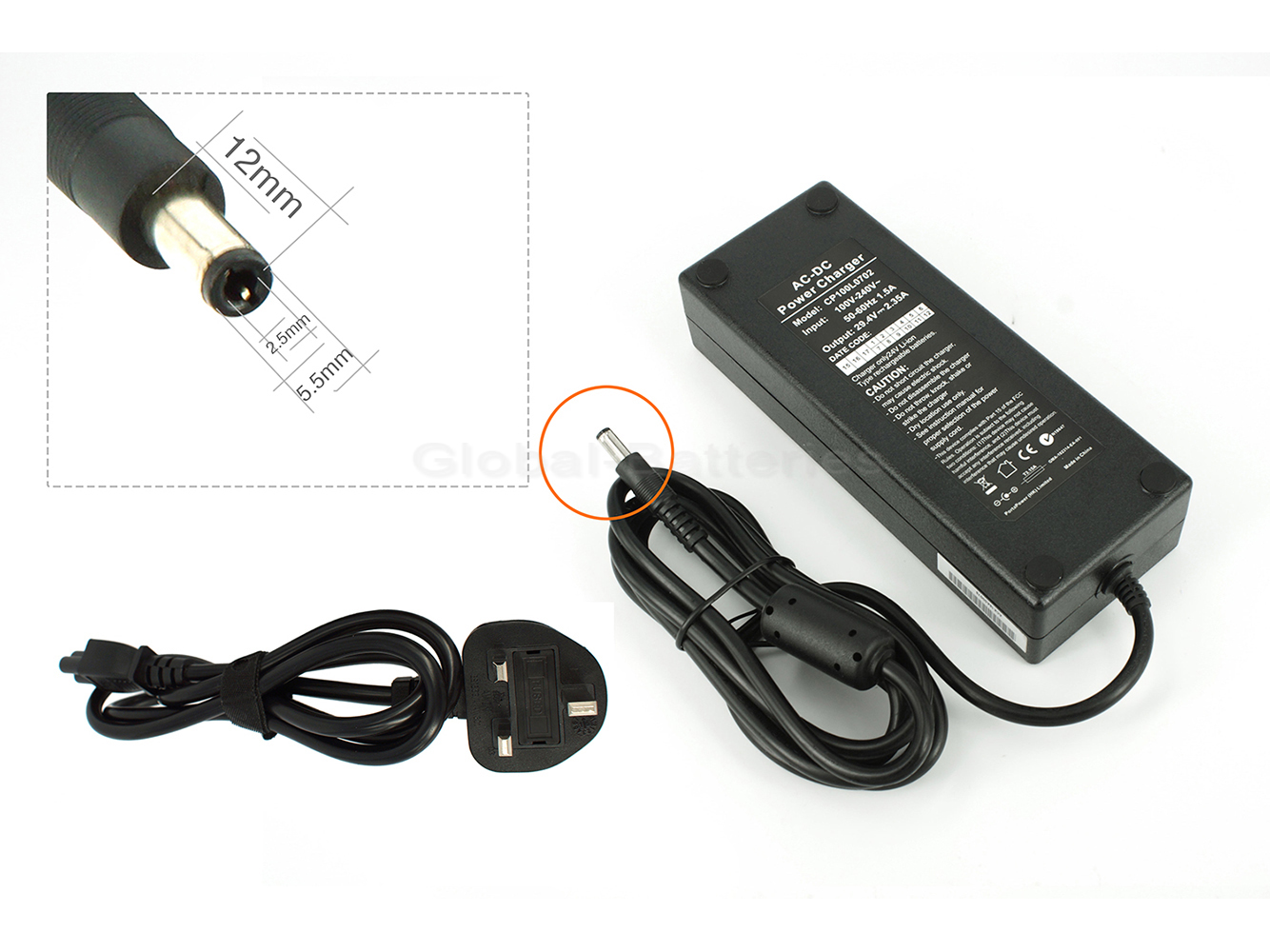

- 24V 2.35A Charger x 1
- Battery bracket x 1
- Lock and key x 1
| Battery Range* |
| Capacity |
Minimum Range |
Maximum Range |
| 11.6Ah |
Approx 33km (20mi) in hilly terrain |
Approx 56km (34mi) in gentle terrain |
| * Can vary significantly depending on terrain, riding style, type of bike and weather. |
Battery Features
- Cell Balancing with intelligent BMS (Battery Management System)
- Over charge, over discharge, over current and temperature protection
- EMC Certificate (Electro Magnetic Compatibility)
- Splash protected casing
- Safety convex groove on the battery case to prevent inserting battery into unmatched battery bracket
| Technical Data - Battery & Bracket |
| Voltage |
24V |
| Capacity |
11.6Ah/278Wh |
| Continuous Discharge Current |
13A |
| Cell Brand |
Panasonic |
| Battery Weight |
1.8kg |
| Weight of Battery Bracket |
0.6kg |
| Cable Length of Battery Bracket |
150cm |
| Technical Data - Charger |
| Technical Data - Charger |
2.35A |
| Weight of Charger |
0.7kg |
| Power Cable Length |
100cm |
| DC Output Cord Length |
100cm |
| Dimensions |
| Battery |
Battery including Bracket |
| Length |
249mm |
Length |
268mm |
| Width |
148mm |
Width |
148mm |
| Thickness |
56mm |
Thickness |
82mm |
|
